Raptor Lake Book-Size Signage Player

SKU : 01-08-115-00002
(0 review)

This compact media player supports multi-screen digital signage, with four 4K HDMI outputs, Intel processing, expandable memory, flexible networking and discreet installation behind displays or within commercial kiosks.

Functions & Features
Four Outputs

Four independent HDMI connections can each operate a display at resolutions up to 4096 × 2304 at 60Hz.

Intel Processing

The media player supports 13th-generation Intel Core i3-1315U or i5-1335U processors.

Expandable Memory

Two DDR4 SO-DIMM slots support up to 64GB of memory, with an M.2 connection for PCIe storage.

Network Connectivity

Connectivity options include Gigabit Ethernet, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E and optional mobile networking.

Compact Enclosure

The slim metal chassis can be installed behind displays or inside kiosks, fixtures and equipment enclosures.

£ 0.00 £ 0.00
£ 0.00

This compact digital signage media player is developed for multi-screen applications. It can be used to operate menu boards, video walls, information displays, kiosks and other commercial digital signage installations.

The player supports 13th-generation Intel Core i3-1315U and i5-1335U processors. This provides a choice of processing performance depending on the content, software and number of displays required.

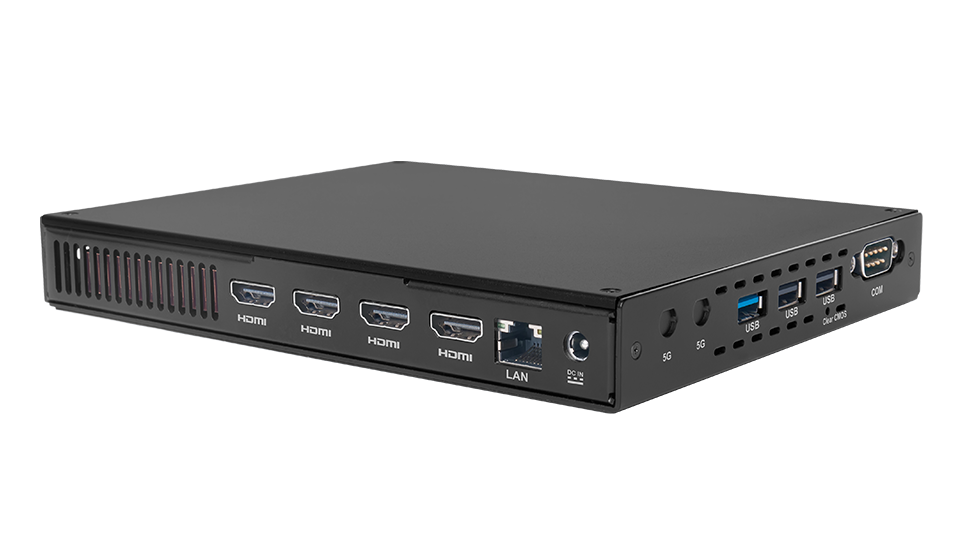

Four independent HDMI outputs can each support up to 4096 × 2304 resolution at 60Hz. A single player can therefore operate up to four separate Full HD or 4K displays.

Two DDR4 SO-DIMM slots support up to 64GB of memory. An M.2 socket is provided for PCIe storage, allowing the internal specification to be configured around the software and media requirements.

Network connections include Gigabit Ethernet, Wi-Fi 5, Wi-Fi 6 and Wi-Fi 6E. Optional 3G, 4G or 5G connectivity can also be added where a fixed network connection is unavailable.

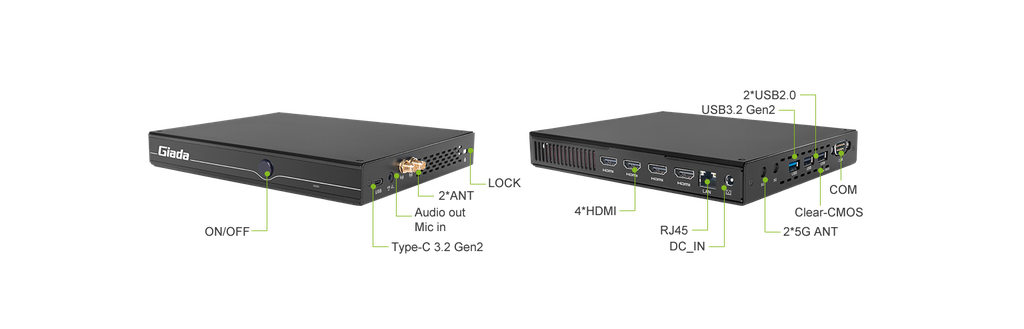

Additional connections include USB-C, USB 3.2, two USB 2.0 ports, RS232 and a combined audio input and output. The metal enclosure measures 189.6 × 148.3 × 26mm and can be installed discreetly behind a screen or inside a kiosk or fixture.

KSF Global can configure and integrate the D613 with compatible displays, content management software, and network infrastructure. Contact the team to discuss the number of screens, software requirements and wider digital signage project.

KSF Global products are typically bespoke and made to order. Images, dimensions, colours, materials, finishes and product details shown are intended as a general guide only and may vary depending on the final agreed specification.

Care, handling, assembly and installation requirements will depend on the final product design, materials, finish, size, weight and intended environment. Where applicable, project-specific instructions, drawings or installation guidance will be provided or agreed as part of the project.

Products should be handled with care, positioned securely and used only for their intended purpose. Surfaces should be cleaned with a soft, dry or lightly damp cloth unless otherwise advised. Avoid abrasive cleaners, harsh chemicals or excessive moisture, as these may damage surfaces, graphics, finishes, fixings or electronic components.

Larger, heavier, wall-mounted, freestanding, or electrically powered products should only be assembled, installed, moved, or connected by people with appropriate skills, tools, and experience for the product type and installation environment. All fixings, fittings, supports and electrical connections should be checked before use and maintained as appropriate.

Customers are responsible for ensuring that the final product is suitable for the intended location, use, loading, installation surface, power supply and operating environment, unless otherwise agreed in writing with KSF Global.

For project-specific care, assembly, installation or maintenance guidance, please contact the KSF Global team.
