HOLOLUMINESCENT™ Touch Display

SKU : 01-01-101-00031
(0 review)
This 27-inch hololuminescent touch display creates layered interactive visuals for retail counters and product showcases, combining 4K portrait resolution, optical bonding, anti-glare glass and flexible external device connectivity options.

Functions & Features
Layered Visuals
Hololuminescent technology gives digital content a greater sense of depth than a conventional flat display.
4K Resolution
The 27-inch portrait LCD panel has a 2160 × 3840 resolution, 500 cd/m² brightness and 10-bit colour depth.
Optical Bonding
Clear Bond optical bonding reduces the space between the LCD panel and protective cover glass.
Protected Surface

Thermally strengthened anti-glare glass provides 7H surface hardness and IK08 impact protection.

External Connectivity

HDMI, DisplayPort, USB-B, USB 2.0 and audio connections support compatible external computers and media devices.

£ 0.00 £ 0.00
£ 0.00

  • Screen Size
Screen Size 27", 16'', 86''

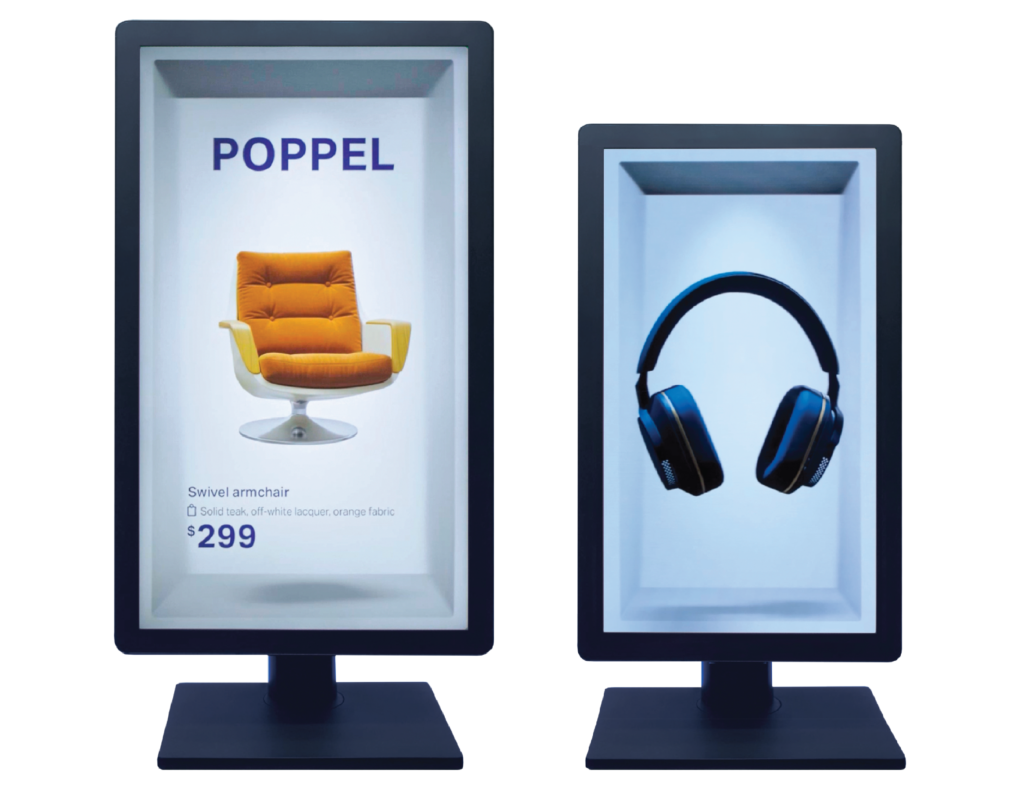

The 27-inch HOLOLUMINESCENT™ Touch Display is an interactive portrait screen developed for product presentations, counter displays and digital showcase applications. Its hololuminescent format gives visual content a layered appearance, helping create a stronger sense of depth than a conventional flat display.

The LCD panel has a portrait resolution of 2160 × 3840, a brightness of 500 cd/m² and a 1200:1 contrast ratio. It also supports 10-bit colour depth and a 178-degree viewing angle, helping content remain clear when viewed from different positions.

Clear Bond optical bonding brings the LCD panel and cover glass closer together. This reduces the visible gap between the touch surface and the content, creating a more direct viewing and interaction experience.

The front surface uses thermally strengthened anti-glare glass with 7H hardness and IK08 impact protection. The front of the unit is rated IP65, while the rear is rated IP40.

The display is designed for use with an external computer or media player. Connections include HDMI, DisplayPort, USB-B, three USB 2.0 ports and a 3.5mm audio output. VESA 100 × 100 mounting is also supported.

KSF Global can integrate this display into a wider interactive retail, digital showcase or product-demonstration project. Contact the team to discuss the content, external hardware, supporting fixture and installation requirements.

KSF Global products are typically bespoke and made to order. Images, dimensions, colours, materials, finishes and product details shown are intended as a general guide only and may vary depending on the final agreed specification.

Care, handling, assembly and installation requirements will depend on the final product design, materials, finish, size, weight and intended environment. Where applicable, project-specific instructions, drawings or installation guidance will be provided or agreed as part of the project.

Products should be handled with care, positioned securely and used only for their intended purpose. Surfaces should be cleaned with a soft, dry or lightly damp cloth unless otherwise advised. Avoid abrasive cleaners, harsh chemicals or excessive moisture, as these may damage surfaces, graphics, finishes, fixings or electronic components.

Larger, heavier, wall-mounted, freestanding, or electrically powered products should only be assembled, installed, moved, or connected by people with appropriate skills, tools, and experience for the product type and installation environment. All fixings, fittings, supports and electrical connections should be checked before use and maintained as appropriate.

Customers are responsible for ensuring that the final product is suitable for the intended location, use, loading, installation surface, power supply and operating environment, unless otherwise agreed in writing with KSF Global.

For project-specific care, assembly, installation or maintenance guidance, please contact the KSF Global team.
